Building Real-Time Applications with Socket.IO setup: Step-by-Step Tutorial

Socket.IO setup. In today’s interconnected world, real-time applications are becoming increasingly essential. Whether it’s for live , collaborative tools, or gaming, real-time enhances user engagement and makes interactions more dynamic. One powerful tool for building real-time applications is Socket.IO. In this tutorial, we will guide you through the process of building a real-time application using Socket.IO, focusing on key concepts and practical implementation.

What is Socket.IO?

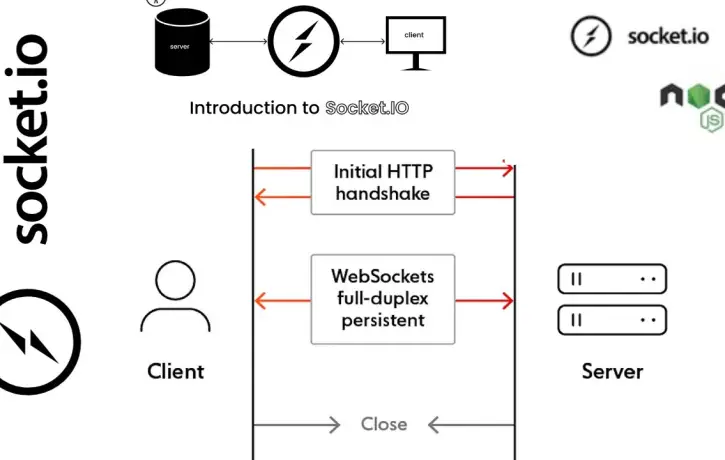

Socket.IO is a JavaScript library that enables real-time, bidirectional communication between web clients (like browsers) and servers. Unlike traditional HTTP requests, which follow a request-response model, Socket.IO provides a persistent connection, enabling instant data exchange between the client and server.

Socket.IO works on top of WebSockets, but it provides fallback mechanisms for environments where WebSockets may not be available. This ensures that real-time communication is possible in a wide range of conditions, making it a versatile choice for building interactive web applications.

Prerequisites

Before we dive into the tutorial, make sure you have the following:

  • Basic knowledge of JavaScript and Node.js
  • Node.js installed on your machine. You can download it from nodejs.org.
  • A code editor (like Code or Sublime Text).

Step 1: Setting Up the Project

Start by setting up a basic Node.js project.

  1. Create a new directory for your project:

    bash
    mkdir real-time-app
    cd real-time-app

  2. Initialize a new Node.js project:

    bash
    npm init -y

  3. Install Express and Socket.IO:

    bash
    npm install express socket.io

Express is a lightweight web framework for Node.js that simplifies the creation of web servers. Socket.IO will handle real-time communication between the server and the client.

Step 2:

Now that we’ve set up the dependencies, let’s create a simple server.

  1. Create a file called server.js in the project root:

    js
    const express = require('express');
    const http = require('http');
    const socketIo = require('socket.io');    // Create an instance of Express app
    const app = express();// Create an HTTP server
    const server = http.createServer(app);

    // Initialize Socket.IO with the HTTP server
    const io = socketIo(server);

    // Serve static files (like HTML, CSS, JS)
    app.use(express.static(‘public’));

    // Handle socket connection
    io.on(‘connection’, (socket) => {
    console.log(‘a user connected’);

    // Handle message from client
    socket.on(‘chat message’, (msg) => {
    io.emit(‘chat message’, msg); // Emit the message to all clients
    });

    // Handle disconnect
    socket.on(‘disconnect’, () => {
    console.log(‘user disconnected’);
    });
    });

    // Start the server
    server.listen(3000, () => {
    console.log(‘Server is running on http://localhost:3000’);
    });

Step 3:

Next, we need to create the client-side code that will connect to the server and send/receive messages in real time.

  1. Create a public folder inside the project directory. In the public folder, create an index.html file:

    html
    <!DOCTYPE html>
    <html lang="en">
    <head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Real-Time Chat</title>
    <script src="/socket.io/socket.io.js"></script>
    </head>
    <body>
    <h1>Real-Time Chat Application</h1>
    <ul id="messages"></ul>
    <form id="form" action="">
    <input id="input" autocomplete="off" /><button>Send</button>
    </form>    <script>
    const socket = io(); // Connect to the server    // Listen for messages from the server
    socket.on(‘chat message’, function(msg){
    const li = document.createElement(‘li’);
    li.textContent = msg;
    document.getElementById(‘messages’).appendChild(li);
    });

    // Handle form submission
    const form = document.getElementById(‘form’);
    form.addEventListener(‘submit’, function(event){
    event.preventDefault();
    const input = document.getElementById(‘input’);
    socket.emit(‘chat message’, input.value); // Send the message to the server
    input.value = ”; // Clear the input field
    });
    </script>
    </body>
    </html>

Step 4: Run the Application

With the server and client code in place, it’s time to run the application!

  1. In your terminal, run the following command:

    bash
    node server.js

  2. Open your browser and go to http://localhost:3000. You should see the chat interface. Open multiple browser windows or tabs to simulate multiple users.

    • Type a message in the input field and click “Send.”
    • You should see the message appear in real-time in all open windows/tabs.

Step 5: and

Congratulations! You’ve built a basic real-time chat application using Socket.IO. To enhance the application, consider adding the following features:

  • User authentication: Allow users to log in before they can send messages.
  • Private messaging: Enable users to send messages to specific individuals.
  • Message persistence: Use a database (e.g., MongoDB) to store chat .
  • Typing indicators: Show when a user is typing a message in real time.
  • Emoji : Allow users to send emojis and other media.

Conclusion

Socket.IO setup. In this tutorial, we covered the of building a real-time application using Socket.IO. We walked through setting up a Node.js server with Express, integrating Socket.IO for real-time communication, and creating a simple chat interface on the client side. Socket.IO makes it easy to add real-time features to your web applications, enabling more dynamic and interactive experiences for users.

With this foundation, you can now start exploring more advanced real-time features and take your applications to the next level!
